*INTRODUCTION

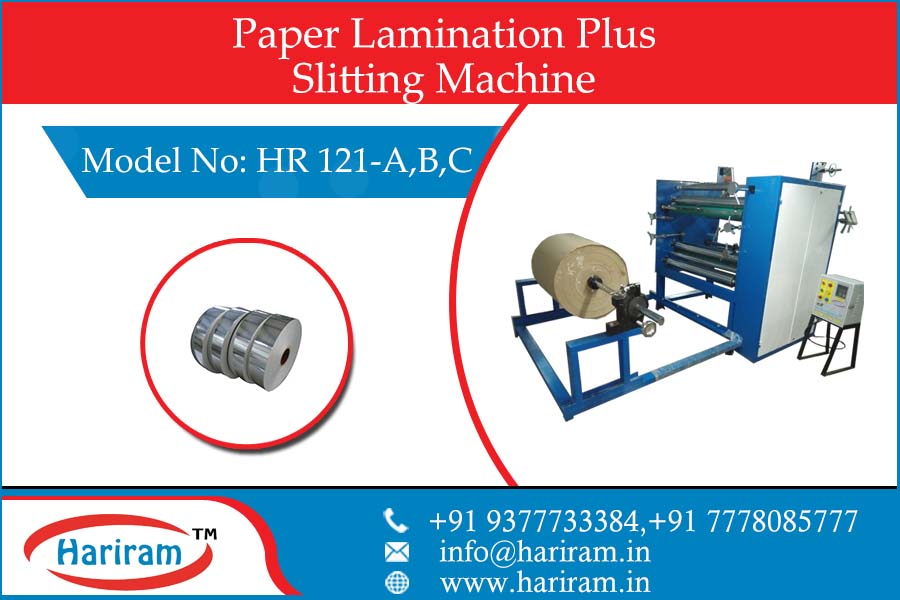

Lamination machine is used for laminating of two materials like paper and various types of films like polyester, BOPP, PVC etc., with the slitting option in this machine you can shape paper material in narrow width.
*NOTE
As per your requirement we can provide 230 V/AC single phase motor or 440 V/AC Three Phase motor with Machine.
*TECHNICAL SPECIFICATIONS
|
PERTICULERS |
HR -121 A (32”) |
HR – 121 B (42”) |
HR – 121 C (52”) |
|
LENGTH |
10FT |
10FT |
10FT |
|
WIDTH |
7FT |
8FT |
9FT |
|
HEIGHT |
6FT |
6FT |
6FT |
|
FLOOR AREA |
70SQ.FT |
80SQ.FT |
90SQ.FT |
|
WORKING SPACE |
800SQ.FT |
800SQ.FT |
800SQ.FEET |
|
MAX.WEIGHT OF MAIN ROLL |
500 Kg |
500 Kg |
500 Kg |
|
MAX.FILM ROLL WIDTH |
30” (711 mm) |
40” (965 mm) |
50” (965 mm) |
|
MAX.FILM ROLL DIA. |
16” (406 mm) |
16” (406 mm) |
16” (406 mm) |
|
MAX. UNWINING ROLL DIA. |
40”(1016 mm) |
40”(1016 mm) |
40”(1016 mm) |
|
MAX.REWINDING ROLL DIA. |
24” (610 mm) |
24” (610 mm) |
24” (610 mm) |
|
REWINDING ID |
3” (76 mm) |
3” (76 mm) |
3” (76 mm) |
|
PAPER WIGHT |
80 to 200 GSM |
80 to 200 GSM |
80 to 200 GSM |
|
PRODUCTION RATE |
20 Mtrs/Min |
20 Mtrs/Min |
20 Mtrs/Min |
|
PRODUCTION SOURCE (230 V/Ac SINGLE PHASE) |
2 HP |
3 HP |
5 HP |
|
TYPE OF BLADE |
Male / Female |
Male / Female |
Male / Female |
|
NO. OF BLADE |
3 |
3 |
3 |
|
MINIMUM SLIT WIDTH |
4” (76 mm) |
4” (76 mm) |
4” (76 mm) |
|
WEB ALLIGNER |
Optional |
Optional |
Optional |
|
|
As per Machine Size |
As per Machine Size |
As per Machine Size |
|
|
As per Machine Size |
As per Machine Size |
As per Machine Size |
WE PROVIDE ONLY ONE ATTACHMENT WITH MACHINE FROM ITEM.
ROLL TO ROLL ATTACHMENT
SHEET TO ROLL ATTACHMENT
