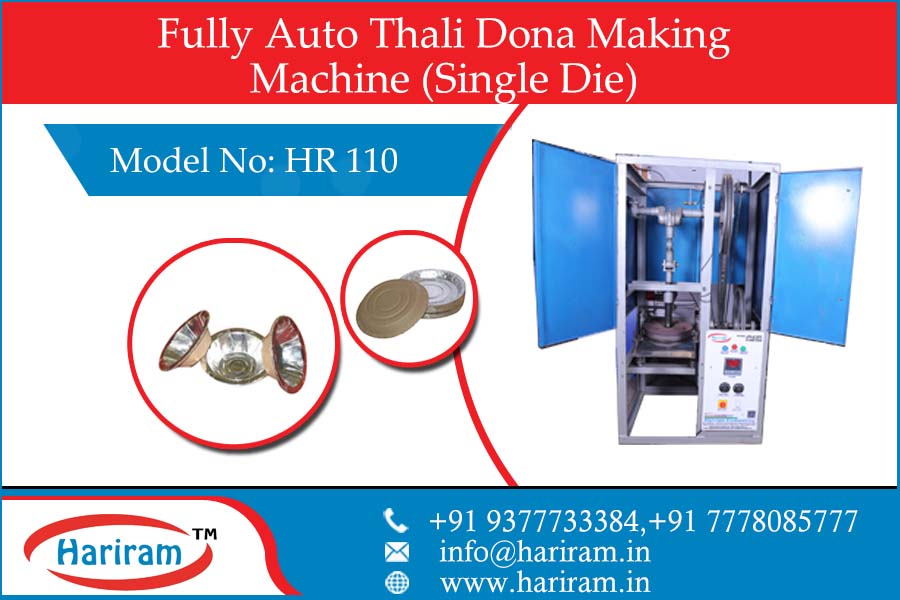

HR 110 FULLY AUTO THALI DONA MACHINE SINGLE DIE

• DIMENTION – L = 2.25FT, W = 3FT, H = 6FT
• FLOOR AREA – 5FT * 6FT = 30 SQ.FT
• WORKING SPACE – 300 SQ.FT

TECHNICAL SPECIFICATION

• DIE TYPE
  • Dona
    • Regular Dona Die
    • Fancy Dona Die
  • Chilla Plate
    • Regular Chilla Plate Die
    • Fancy Chilla Plate Die
  • Thali Die
    • Regular Thali Die
• DIE SIZE: DONA – 4” TO 8”, THALI – 10” TO 14”
• PAPER MATERIAL: SILVER CRAFT – 80GSM TO 180 GSM

• MAX. STROKES PER MINUTE: DONA – 20, THALI - 12
• PRODUCTION RATE (DEPENDING ON PAPER SIZE & GSM):DONA – 1200PCS PER HOUR (1 ROLL)

                      THALI – 720PCS PER HOUR (1 ROLL)

• POWER SOURCE: SINGLE PHASE (220V – 50Hz) OR THREE PHASE (440V – 50Hz)
• ELECTRIC MOTOR: 0.5 HP FOOT MOUNTING – 1440 RPM (SINGLE PHASE OR THREE PHASE)
• WEIGHT OF MACHINE: 250 KG APPROX
• POWER CONSUMPTION WITH HEATER – 1 UNITS / HR

ACCESSORIES

• ADJUSTABLE PANA – 1 NOS
• 14/15 FIX PANA – 1 NOS
• 15/21 FIX PANA – 2 NOS
• 3/16 L&KEY PANA
• CONNECTORS – 4 NOS
• BASE PLATE SPRING – 2 NOS
• HEATER SET OF FREE DIES – 1 SET FOR EACH
• FREE DIE – DONA DIE – 6” - 1 NOS, THALI – 13” OR 14”- 1 NOS

WARRANTY

• INDUCTION MOTOR – 1 YEAR

NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
