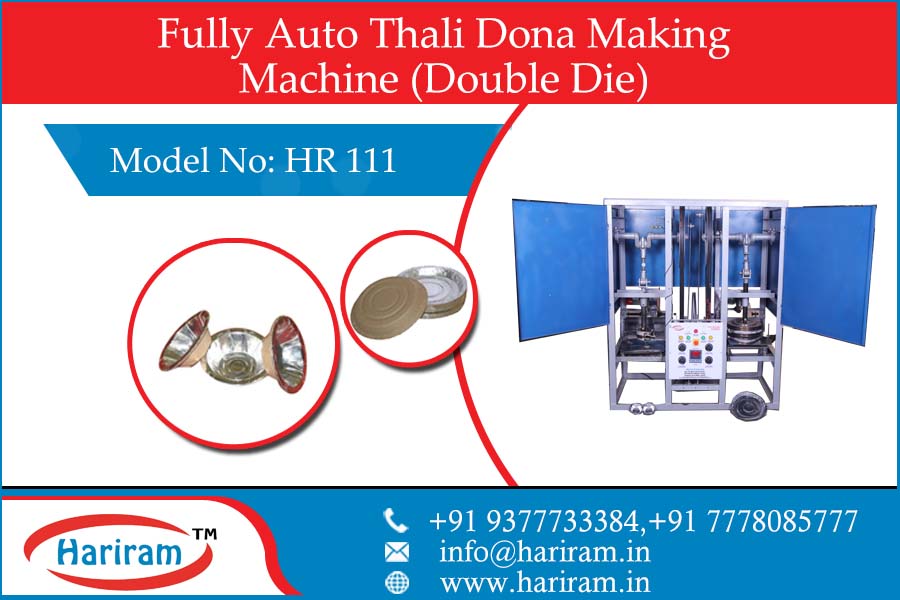

HR 111 FULLY AUTO THALI DONA MACHINE DOUBLE DIE

• DIMENTION – L = 2.25FT, W = 5FT, H = 6FT
• FLOOR AREA – 6FT * 7FT = 42 SQ.FT
• WORKING SPACE – 300 SQ.FT

TECHNICAL SPECIFICATION

• DIE TYPE
  • Dona
    • Regular Dona Die
    • Fancy Dona Die
  • Chilla Plate
    • Regular Chilla Plate Die
    • Fancy Chilla Plate Die
  • Thali Die
    • Regular Thali Die
• DIE SIZE: DONA – 4” TO 8”, THALI – 10” TO 14”
• PAPER MATERIAL: SILVER CRAFT – 80GSM TO 180 GSM

• MAX. STROKES PER MINUTE: DONA – 20, BOTH SIDE THALI – 12, ONE SIDE DONA ONE SIDE THALI - 12
• PRODUCTION RATE (DEPENDING ON PAPER SIZE & GSM):

BOTH SIDE DONA – 2400PCS PER HOUR (2 ROLL), BOTH SIDE THALI – 1440PCS PER HOUR (2 ROLL), ONE SIDE DONA ONE SIDE THALI – 1440PCS PER HOUR

• POWER SOURCE: SINGLE PHASE (220V – 50Hz) OR THREE PHASE (440V – 50Hz)
• ELECTRIC MOTOR: 1 HP FOOT MOUNTING – 1440 RPM (SINGLE PHASE OR THREE PHASE)
• WEIGHT OF MACHINE: 350 KG APPROX
• POWER CONSUMPTION WITH HEATER – 1.5 UNITS / HR

ACCESSORIES

• ADJUSTABLE PANA – 1 NOS
• 14/15 FIX PANA – 1 NOS
• 15/21 FIX PANA – 2 NOS
• 3/16 L&KEY PANA
• CONNECTORS – 8 NOS
• BASE PLATE SPRING – 4 NOS
• HEATER SET OF FREE DIES – 1 SET FOR EACH
• FREE DIE – DONA DIE – 6” - 2 NOS, THALI – 13” OR 14”- 1 NOS

WARRANTY

• INDUCTION MOTOR – 1 YEAR

NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
