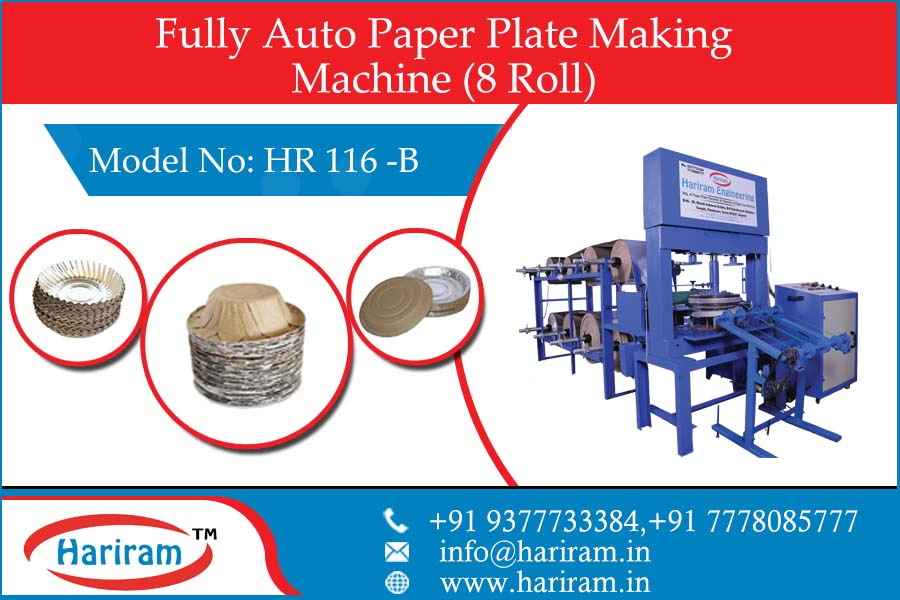

FULLY AUTO PAPER PLATE MALING MACHINE (8 ROLL)-HR 116-B
HR 116-B FULLY AUTO PAPER PLATE MALING MACHINE (8 ROLL)
- DIMENTION – L = FT, W = 5FT, H = 6FT
- FLOOR AREA – FT * 7FT = 84 SQ.FT
- WORKING SPACE – 640 SQ.FT
TECHNICAL SPECIFICATION
- DIE TYPE
- Dona
- Regular Dona Die
- Fancy Dona Die
- Thali
- Regular Thali Die
- Partition Thali Die
- Buffet Thali Die
- Paper Plate
- Chilla Plate
- Regular Chilla Plate Die
- Fancy Chilla Plate Die
- DIE SIZE: PAPER PLATE – 6” TO 14”, THALI – 10” TO 16” , DONA – 6” TO 8”
- PAPER MATERIAL: SILVER CRAFT – 80GSM TO 150 GSM, DUPLEX – 100GSM TO 250GSM
- TOTAL 900 GSM / THALI DIE AND 900 GSM / PAPER PLATE DIE AND 200GSM/DONA DIE
- MAX. STROKES PER MINUTE: PAPER PLATE – 5, THALI – 5, DONA - 10
- PRODUCTION RATE (DEPENDING ON PAPER SIZE & GSM): PAPER PLATE – 2400PCS PER HOUR
THALI – 2400PCS PER HOUR
DONA – 1200PCS PER HOUR (2 ROLL)
- POWER SOURCE: SINGLE PHASE (220V – 50Hz) OR THREE PHASE (440V – 50Hz)
- ELECTRIC MOTOR: 3 HP FLANGE MOUNTING – 1440 RPM (SINGLE PHASE OR THREE PHASE)
- WEIGHT OF MACHINE: 400 KG APPROX
- POWER CONSUMPTION WITH HEATER – 3.25 UNITS / HR
- OIL TANK CAPACITY: 60 LTRS.
- NOTE: WE ARE NOT PROVIDING HYDRAULIC OIL WITH THE MACHINE.
ACCESSORIES
- ADJUSTABLE WRENCH – 1 NOS
- FIX PANA SET – 1 NOS
- L&KEY PANA SET – 1 NOS
- SCREW DRIVER ( T803) – 1 NOS
- TESTER REGULAR – 1 NOS
- SINGLE ATTACHMENT – 1 NOS
- 15/21 FIX PANA – 1 NOS
- 1/4, 3/16, 7/32 L&KEY PANA – 1 NOS FOR EACH
- CONNECTORS – 8 NOS
- SUPPORTED RUBBER – 1 NOS
- DIE CLAMPS – 4 NOS
- HEATER SET OF FREE DIES (CERAMIC HEATER FOR PAPER PLATE DIE ONLY) – 1 SET FOR EACH
- FREE DIES – PAPER PLATE DIE – 6” OR 7” OR 8” – 1 NOS
DONA DIE – 6” - 2 NOS
THALI DIE – 13” OR 14” – 1 NOS
WARRANTY
- PLC PANEL – 1 YEAR
- INDUCTION MOTOR – 1 YEAR
- STEPPER MOTOR – 6 MONTHS
NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
