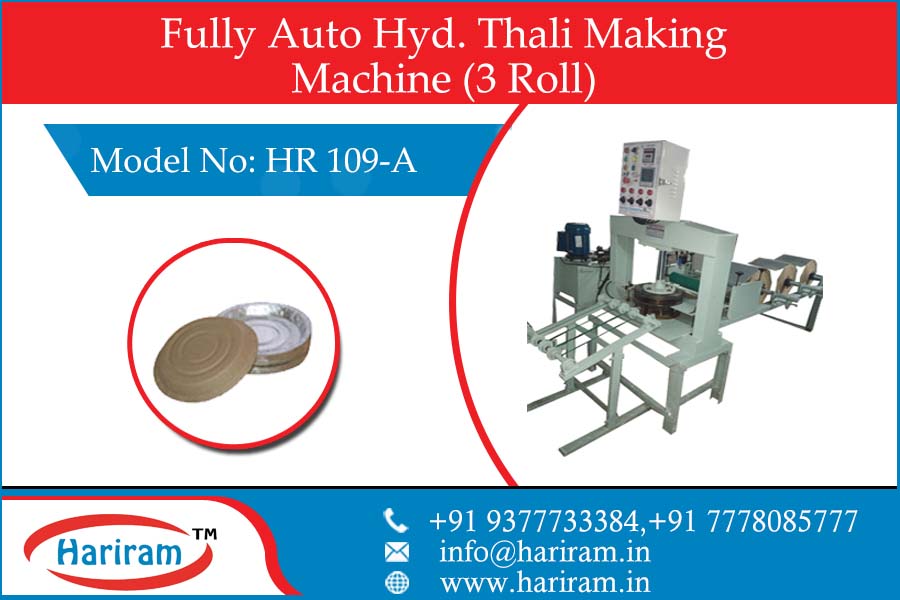

HR 109-A FULLY AUTO HYD. THALI MAKING MACHINE (3 ROLL)

• DIMENTION – L = 8FT, W = 4FT, H = 5FT
• FLOOR AREA – 10FT * 6FT = 60 SQ.FT
• WORKING SPACE – 600 SQ.FT

TECHNICAL SPECIFICATION

• DIE TYPE
  • Thali
    • Regular Thali Die
    • Partition Thali Die
    • Buffet Thali Die

• DIE SIZE: THALI – 10” TO 16”
• PAPER MATERIAL: SILVER CRAFT – 80GSM TO 200 GSM

• MAX. STROKES PER MINUTE: THALI – 7
• PRODUCTION RATE (DEPENDING ON PAPER SIZE & GSM): THALI – 1260PCS PER HOUR

• POWER SOURCE: SINGLE PHASE (220V – 50Hz) OR THREE PHASE (440V – 50Hz)
• ELECTRIC MOTOR: 2 HP FLANGE MOUNTING – 1440 RPM (SINGLE PHASE OR THREE PHASE)
• WEIGHT OF MACHINE: 350 KG APPROX
• POWER CONSUMPTION WITH HEATER – 2.75 UNITS / HR
• OIL TANK CAPACITY: 50 LTRS.
• WE ARE NOT PROVIDING HYDRAULIC OIL WITH THE MACHINE.

ACCESSORIES

• PANEL CLAMP – 1 NOS
• ADJUSTABLE WRENCH – 1 NOS
• FIX PANA SET – 1 NOS
• L&KEY PANA SET – 1 NOS
• SCREW DRIVER ( T803) – 1 NOS
• TESTER REGULAR – 1 NOS
• SINGLE ATTACHMENT – 1 NOS
• 15/21 FIX PANA – 1 NOS
• 1/4, 3/16, 7/32 L&KEY PANA – 1 NOS FOR EACH
• CONNECTORS – 8 NOS
• SUPPORTED RUBBER – 1 NOS
• DIE CLAMPS – 4 NOS
• HEATER SET OF FREE DIES (CERAMIC HEATER FOR PAPER PLATE DIE ONLY) – 1 SET FOR EACH
• FREE DIES – THALI DIE – 13” OR 14”- 1 NOS

WARRANTY

• INDUCTION MOTOR – 1 YEAR

NOTE: WE ARE PROVIDING ONLY REPAIR WARRANTY
