THERMAL & COLD LAMINATION
Product Overview

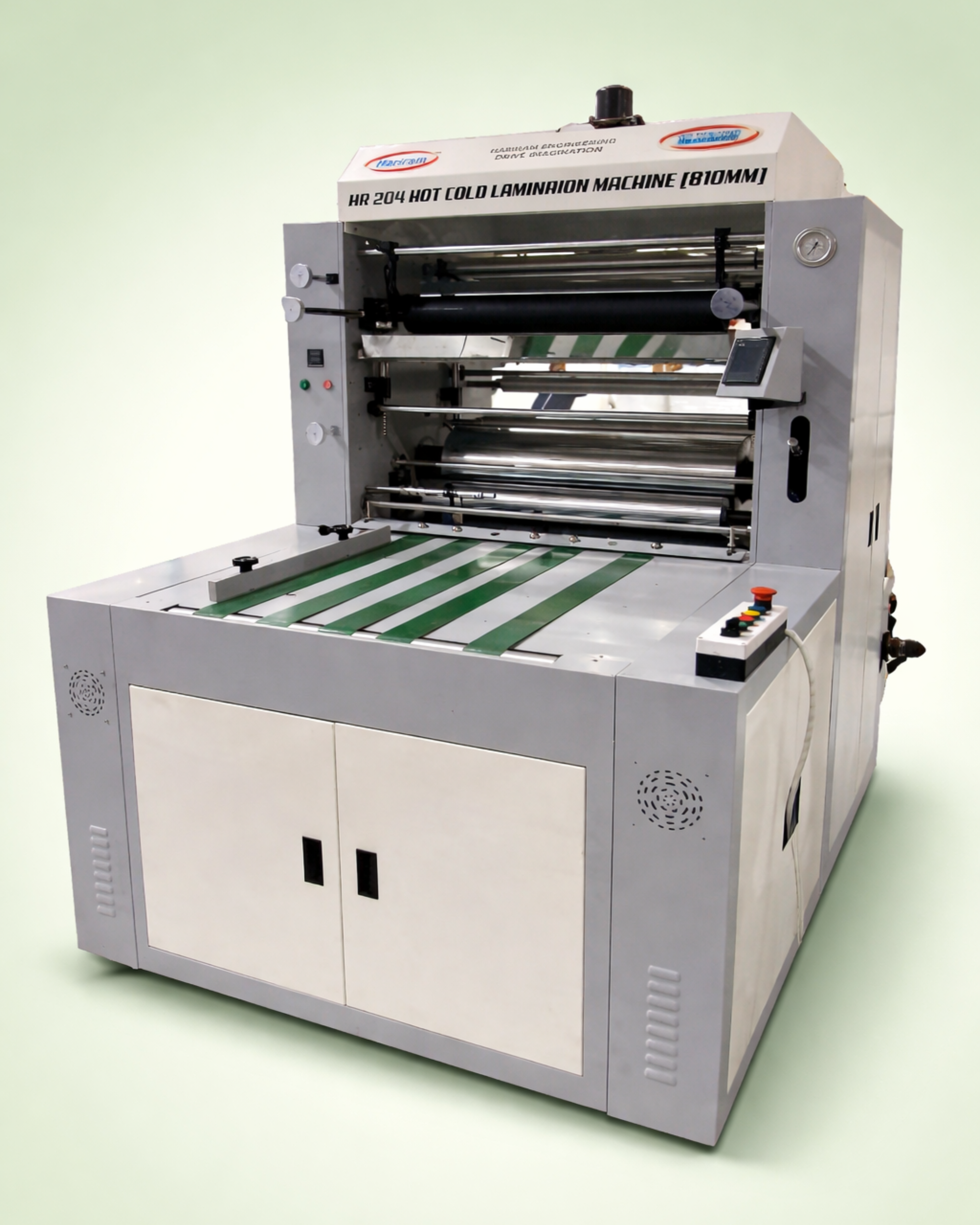

- The HR 204 Thermal (Hot) & Cold Lamination Machine has been manufactured by Hariram since 2005.
- Equipped with a 255 mm diameter highly polished mirror-chromed lamination roller for superior finish quality.
- Utilizes a 3 kW electric/oil heating system for thermal lamination.
- Temperature control up to 120°C, regulated by an IR sensor for precise heating.
- Features automatic hydraulic pressure control ranging from 5 to 60 bar for high-quality lamination results.
- Includes a duplex unwind station, laterally micro-adjustable up to 100 mm.
- Integrated with a water-based lamination coating station.
- Comes with a heavy-duty rewinding station for efficient output handling.
- Uses a friction feeding system with a manual feeding table.
- Equipped with an auto sheet overlapping system for smooth operation.
- Includes a film slitting and perforation device for added versatility.
- Powered by a Bharat Bijlee AC Motor with speed reduction gearbox and variable speed drive.
- Fitted with an electrically operated hydraulic power pack.
- The Induction Motor and Electric Panel are covered by a 1-year repair warranty.
Features
- Manual pressure option for below 90 GSM paper (for plain lamination).
- SS gum tray with worm wheel and U/D (Up/Down) system in the water-based coating station.
- Felt clutch mounted on ball bearing in the heavy-duty rewinding station.
- Manual feeding system with 5 belts and advanced belt adjustment system.
- Standard available sizes: 24”, 32”, 42”.
Electricals
-
AC Motor (Bharat Bizli make) with speed reduction gear box variable speed drive electric control panel with AC drive controller with exhaust fan.
-
Hydraulic power pack with regulator, pressure gauge (Electrically operated.)
-
Stock range 70~450 gsm paper or board.
-
Line speed 0~50 mtrs/min for water based & 0~25 mtrs/min for thermal lamina on.
-
Length counter
Technical Specifications
Specifications | Details |
Model | HR 204 |
Max Paper Size | 750 mm |
Max Paper Length | 1065 mm |
Operating: Speed | 0 - 20 meter/min |
Laminating Temperature | 80 - 125'c |
Total Voltage | 3 K/V |
Voltage | 220V / 50Hz |
Dimensions (L*W*H) | (96*60*70) inch |
Pressure | 0.1 - 0.5MPa |
Feeding Mode | Manual (Auto overlapping 1 mm to as per requirement) |
Feeding Method | Friction |
