ROLL TO ROLL SCREENPRINTING WITH FOILER
Product Overview
-
Screen printing is a versatile printing technique that uses a finely woven mesh to transfer ink onto a selected substrate.
-
Specific areas of the mesh are blocked using a stencil to ensure ink passes only through the desired design sections.
-
A squeegee is used to evenly spread ink across the screen, allowing it to pass through the open mesh onto the surface below.
-
The process ensures precise ink transfer, delivering sharp and vibrant impressions.
-
Each color is applied separately using individual screens, enabling accurate multi-color designs.
-
This method is ideal for producing high-quality prints on various materials, offering durability and consistent results.
Standard Features
- Pneumatically controlled and adjustable squeegee flood pressure.
- Fine pressure adjustments with dial indicators.
- Adjustable squeegee angle from 0° to 30°.
- Adjustable skew angle.
- Aluminium extruded squeegee holder and coater for even pressure.
- Precision printing machine guarantees high accuracy and high resolution.

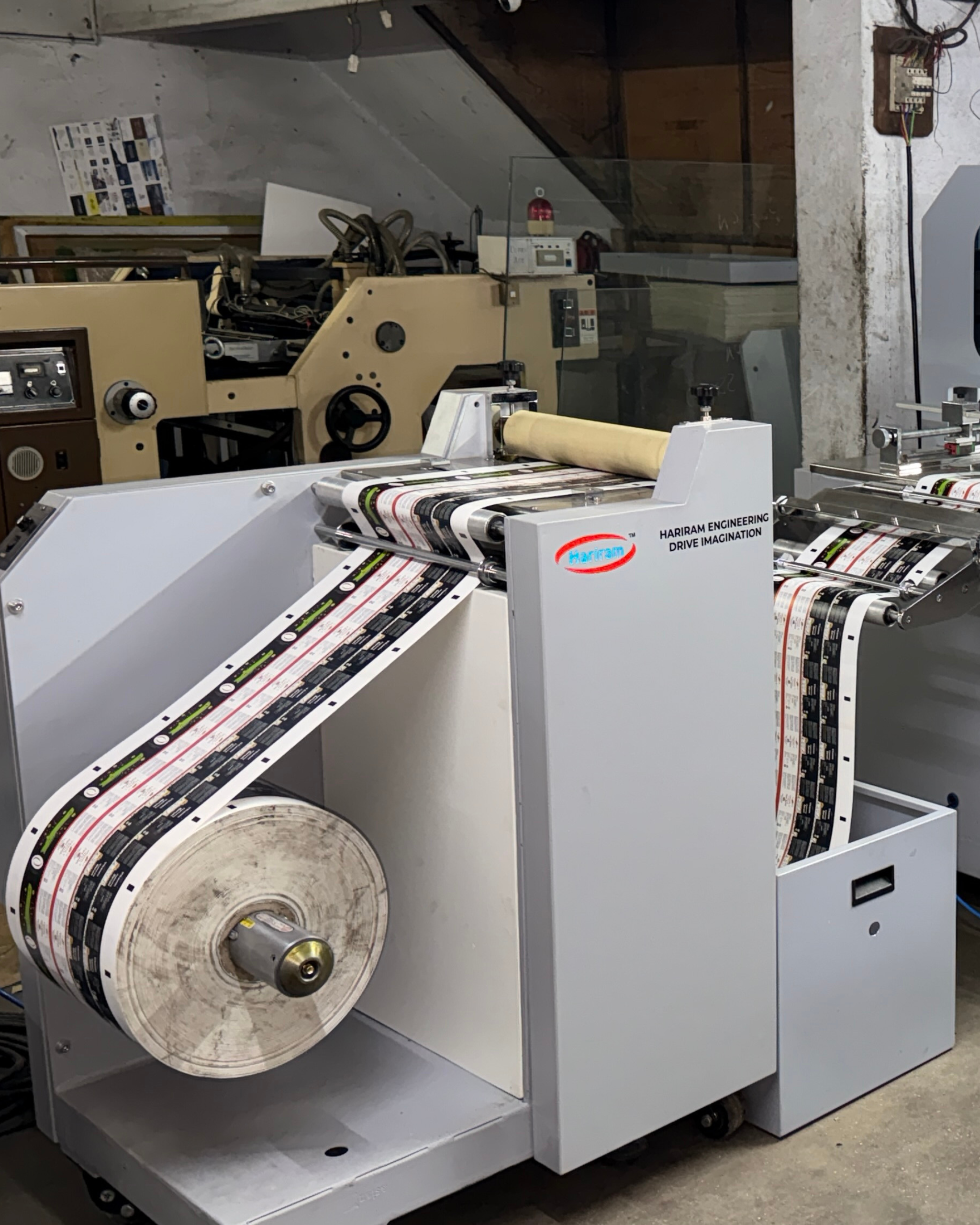

- Print path starts at the unwinder, moves through the compensator and screen-printing unit, followed by UV curing, a second compensator, the foiling unit, and finishes at the winding unit.
Technical Specifications
Specifications | Details |
Max. Print Area | 350 × 400 mm |
Min. Print Area | 10 × 10 mm |
Max. Unwind Diameter | 500 mm |
Max. Rewind Diameter | 500 mm |
Print Speed | 350 - 400 m/hr |
Screen Frame Area | 700 mm × 500 mm |
Max. Web Width | Optional |
Air Pressure Required | 6 CFM @ 6 Bar |
Power | 415v, 16 A |
Power Supply | Three Phase |
Web Thickness | 100 GSM TO 200 GSM |
Web Cleaner | Optional |
Online Corona Treatment | Optional |
Operations | Servo drive based, PLC Controlled |
Machine Type | Hariram Engineering Screen Printing Machine |
Gross Weight | 1600 kg (Approx.) |
Dimensions | 22 feet length × 3.5 feet width |
Cast & Cure | Optional |
