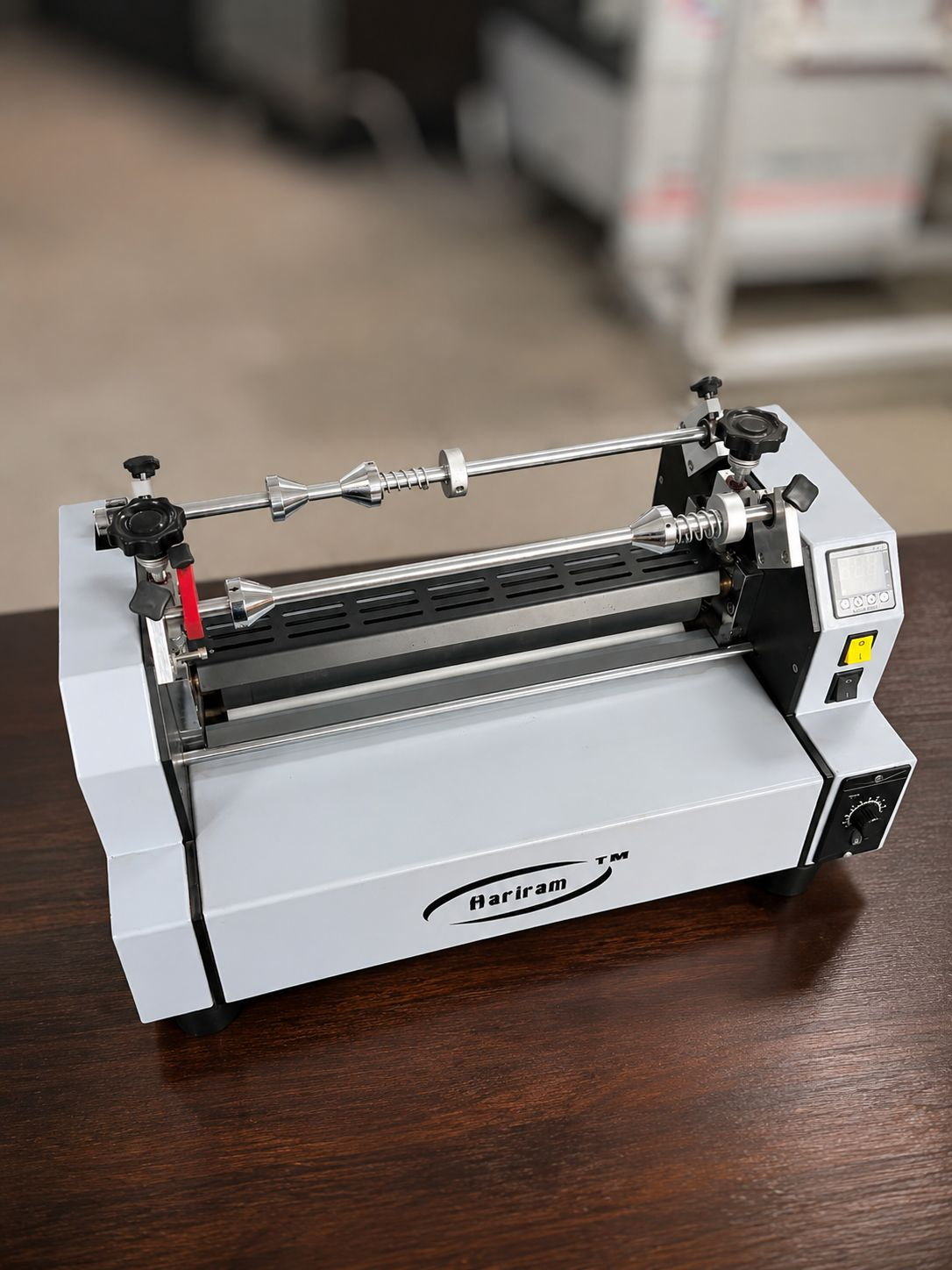

HR-201 Foil Trans Machine
Hot stamping or foil stamping is a printing method of relief printing in which foils are transferred to a surface at high temperatures. The method has diversified since its rise to prominence in the 19th century to include a variety of processes. After the 1970s, hot stamping became one of the most important methods of decoration on the surface of different types of paper, acrylic, and PVC sheets.
Machine Features | |
---|---|
Minimum Foil Wastage (Operated by PLC) | Yes |
Minimum Chemical Waste | Yes |
Block-Free Machine | Yes |
Easy to Operate (Touch Screen Panel) | Yes |
Heavy-Duty Machine | Yes |
Delivery Time Period | 30 to 35 days |
Technical Specifications | |
---|---|
Production | 1200 to 1300 pcs/hour (depends on material type & thickness) |
Application | Paper, Board, M.D.F. Board, Leather, Wooden, Acrylic, PVC |
Raw Material Thickness | 0.01 mm to 10 mm |
Power Source | 1 Phase / 3 Phase (220V / 440V) |
Main Motor | 2 HP, 1440 RPM |
Heater | Pencil Heater, 1150 Watt |
Servo Motor | 1 KW, 2000 RPM (Without Brake) |
VFD | 2 HP (Delta Make) |
Sensor | Thermocouple Sensor |
Accessories | |
---|---|
Pencil Heater | 1 pc |
Stanley Tool Box | 1 set |
Warranty | |
---|---|
Machine Warranty | 1 year |
